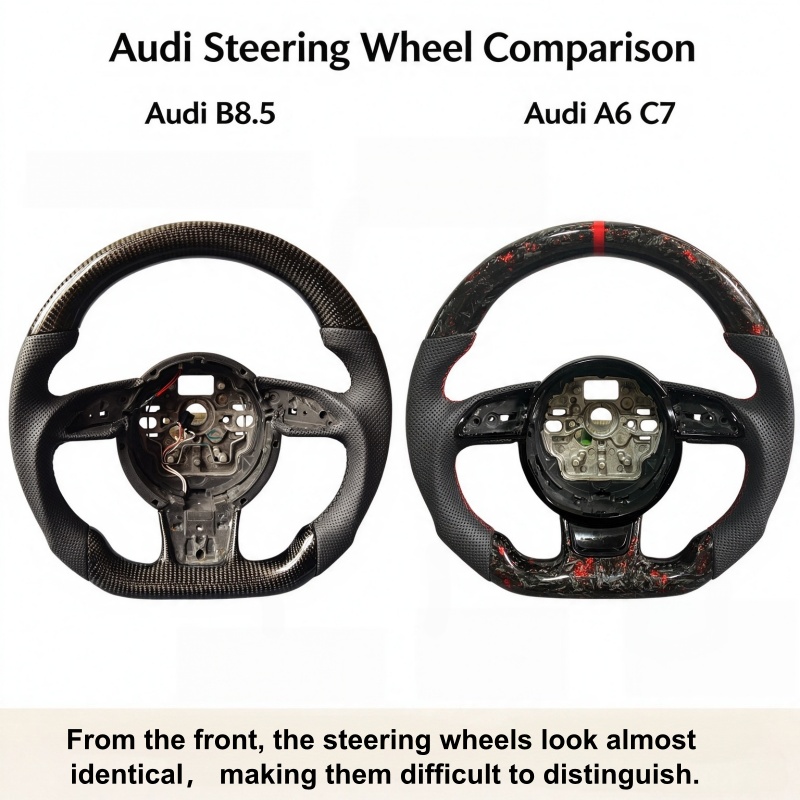

Audi steering wheel adaptation guide: A6 C7 (4G) vs. A4/A5 B8.5

Many customers have asked whether the Audi B8.5 steering wheel can be installed on the Audi A6 and C7 chassis models. Here, we clearly explain platform differences, hardware compatibility, and electronic compatibility for your reference before placing an order.

The

Audi A6 with chassis code C7 (4G) and the B8.5 generation Audi A4/A5 belong to different vehicle platforms.

• The B8.5 refers to facelifted versions of the Audi A4/A5, produced from 2013 to 2016, based on the B-segment platform.
• The 2015 Audi A6 uses the C7 (4G) chassis, which belongs to the C-segment platform, but the overall chassis architecture is different.

Hardware differences

1. The spline of the steering shaft
is consistent in size. The B8.5 steering wheel can be directly mounted and fastened to the A6 and C7 steering columns, enabling mechanical fixation.

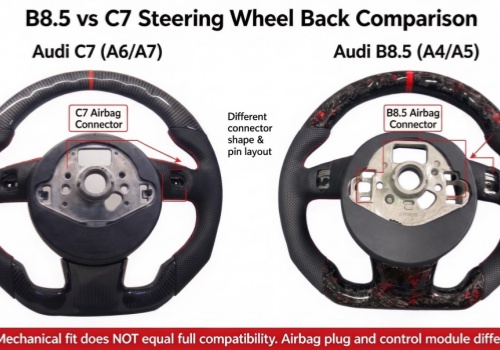

2. Connectors, wiring, and control modules

Connectors, clock springs, multifunctional wiring harnesses, and the J527 steering control module are not interchangeable.

The connector pin

definitions for B8.5 generation A4/A5 differ from those of the Audi A6 and C7. The communication protocols for multifunction buttons, cruise control, and MMI knobs are also incompatible.

If you install it directly without modification, you are likely to encounter the following issues: warning lights coming on, buttons, and paddle shifters failing.

In short: the steering wheel can be mechanically installed, but all functions cannot be used properly, and **plug-and-play is not supported**.

Note: The 2015 Audi A6 C7 is a facelifted version of the C7PA. There are also subtle differences between the C7PA steering wheel and the earlier C7 model.

Compatibility summary

✅ B8.5 carbon fiber steering wheel: Originally adapted for Audi A4/A5 B8.5 (2013–2016 models), fully retains original vehicle functions after installation.

⚠️ Installing a B8.5 steering wheel on the 2015 A6 C7: This is a cross-vehicle modification project that requires custom wiring harnesses and vehicle coding, and is not plug-and-play.

❌ The factory C7 A6 steering wheel cannot be directly installed on the Audi A4/A5 B8.5.

Important reminder

Before purchasing a modified steering wheel, please confirm your chassis code, original vehicle wiring, and connectors. Cross-platform installation requires professional modification experience.
